This article delves into the erosion resistance mechanism of AZS (Alumina-Zirconia-Silica) refractory blocks. Fused cast AZS blocks are widely used in high-temperature industrial fields, especially in the glass manufacturing industry, due to their excellent erosion resistance. The article provides a detailed analysis of the chemical composition, physical structure, and performance of Fused cast AZS blocks under high-temperature and chemically erosive environments. By studying the role of zirconia in erosion resistance, the interaction between Fused cast AZS blocks and molten glass, and their phase transformation behavior at high temperatures, the microscopic mechanism of Fused cast AZS blocks‘ erosion resistance is revealed. Additionally, the article explores key factors affecting the erosion resistance of Fused cast AZS blocks and proposes optimization strategies, providing theoretical and practical guidance for future research and development of refractory materials.

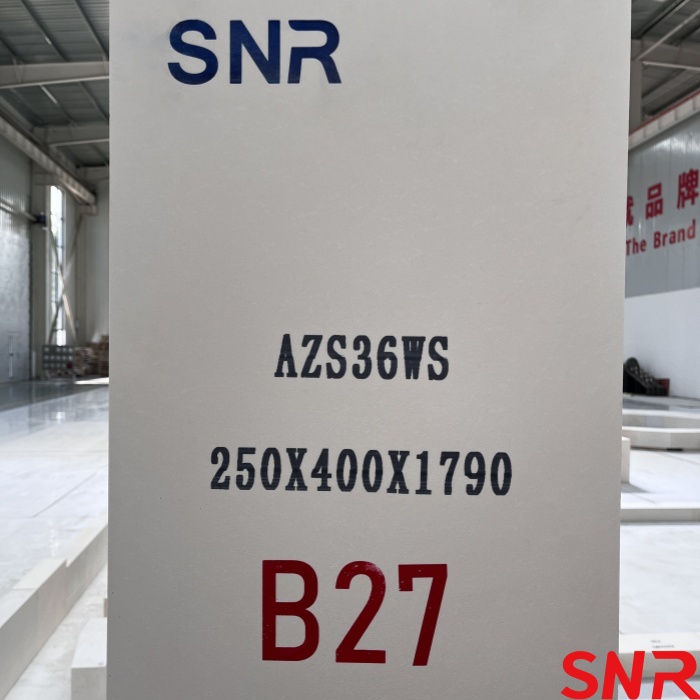

Fused cast AZS blocks, fully known as Alumina-Zirconia-Silica refractory blocks, are exceptional refractory materials that perform well under high-temperature and chemically erosive environments. Their main components include alumina (Al₂O₃), zirconia (ZrO₂), and silica (SiO₂). The unique combination of these components endows Fused cast AZS blocks with outstanding high-temperature resistance, erosion resistance, and thermal shock stability. Fused cast AZS blocks are extensively used in high-temperature industrial fields such as glass manufacturing, particularly in the melting zones of glass furnaces, where their erosion resistance directly impacts the glass furnace‘s service life and the quality of glass products.
1. Chemical Composition and Physical Structure of Fused cast AZS blocks
2. Erosion Resistance Mechanism of Fused cast AZS blocks
3. Key Factors Affecting the Erosion Resistance of Fused cast AZS blocks
4. Strategies to Improve the Erosion Resistance of Fused cast AZS blocks
5. Conclusion

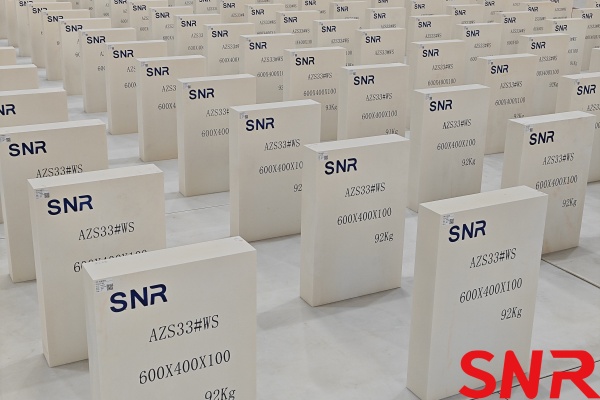

1. Chemical Composition and Physical Structure of Fused cast AZS blocks
(1) Chemical Composition
Alumina (Al₂O₃): Alumina is one of the main components of Fused cast AZS blocks, typically comprising 40% to 50% of the composition. With a high melting point (approximately 2050°C) and excellent mechanical strength, alumina effectively resists mechanical and thermal stresses in high-temperature environments. Additionally, its high chemical stability prevents reactions with alkaline oxides in molten glass, thereby enhancing the erosion resistance of the refractory blocks.
Zirconia (ZrO₂): Zirconia is a key component in Fused cast AZS blocks, usually accounting for 30% to 40% of the composition. With an extremely high melting point (approximately 2715°C) and excellent chemical stability, zirconia maintains structural integrity under high-temperature and highly erosive conditions. Moreover, zirconia undergoes a phase transformation from monoclinic to tetragonal at high temperatures, absorbing significant energy and improving the thermal shock stability and erosion resistance of the refractory blocks.
Silica (SiO₂): Silica typically constitutes 10% to 20% of fused cast AZS blocks. At high temperatures, silica forms a glass phase that fills pores in the block, enhancing its density. Additionally, silica reacts with alkaline oxides in molten glass to form high-melting-point compounds, further improving the erosion resistance of the refractory blocks.
Other Oxides: Fused cast AZS blocks may also contain small amounts of sodium oxide (Na₂O), calcium oxide (CaO), and other oxides. Although present in low quantities, these components can influence the performance of the refractory blocks. For example, sodium oxide and calcium oxide can lower the melting point of the blocks, but excessive amounts may weaken their erosion resistance.
(2) Physical Structure
High Density: Fused cast AZS blocks typically exhibit high density and low porosity, achieved through precise raw material ratios and advanced forming and sintering processes. High density not only improves the mechanical strength of the blocks but also reduces the penetration paths for molten glass and chemical erosive media, thereby enhancing erosion resistance.
Low Porosity: Low porosity is a critical feature of Fused cast AZS blocks, usually controlled below 10%. Low porosity reduces the penetration paths for molten glass and chemical erosive media, improving erosion resistance. Additionally, low porosity enhances thermal conductivity and mechanical strength.
Uniform Grain Distribution: The microstructure of Fused cast AZS blocks typically shows uniform grain distribution and strong grain boundary bonding. Uniform grain distribution improves mechanical strength and thermal shock stability, while strong grain boundary bonding enhances overall performance.
Formation of Glass Phase: At high temperatures, silica in Fused cast AZS blocks forms a glass phase that fills pores and microcracks in the block. This glass phase not only improves mechanical strength but also effectively prevents the penetration of molten glass and chemical erosive media, enhancing erosion resistance.
(3) Microstructural Analysis
Grain Size and Distribution: The grain size of Fused cast AZS blocks typically ranges from a few micrometers to tens of micrometers, with uniform distribution. Uniform grain distribution improves mechanical strength and thermal shock stability, while fine grain size enhances erosion resistance.
Grain Boundary Bonding: Fused cast AZS blocks exhibit strong grain boundary bonding, often with a glass phase or other high-melting-point compounds at the grain boundaries. Strong grain boundary bonding improves mechanical strength and erosion resistance, while high-melting-point compounds at the grain boundaries enhance thermal shock stability.
Pore Distribution: The pores in Fused cast AZS blocks are uniformly distributed, with sizes ranging from a few micrometers to tens of micrometers. Uniform pore distribution improves mechanical strength and thermal shock stability, while fine pore size enhances erosion resistance.
(4) Physical Properties
Mechanical Strength: Fused cast AZS blocks exhibit high mechanical strength, typically with compressive strength exceeding 100 MPa. High mechanical strength helps maintain structural integrity under high-temperature and mechanical stress conditions, extending service life.
Thermal Shock Stability: Fused cast AZS blocks demonstrate excellent thermal shock stability, withstanding rapid temperature changes without cracking. This stability is primarily due to the phase transformation behavior of zirconia and the formation of a glass phase, which enable the blocks to maintain high mechanical strength and structural stability at high temperatures.
Thermal Conductivity: Fused cast AZS blocks have low thermal conductivity, typically below 1.5 W/m·K. Low thermal conductivity reduces heat loss, improves furnace efficiency, and lowers thermal stress on the blocks, extending their service life.
Erosion Resistance: Fused cast AZS blocks exhibit excellent erosion resistance, effectively resisting the erosion of molten glass and chemical erosive media. This resistance is primarily due to the high melting point and chemical stability of zirconia, as well as the formation of a glass phase and uniform grain distribution.
2. Erosion Resistance Mechanism of Fused cast AZS blocks
The erosion resistance mechanism of Fused cast AZS blocks primarily relies on their unique chemical composition and physical structure. The following sections elaborate on this mechanism from four perspectives: the role of zirconia, interaction with molten glass, high-temperature phase transformation behavior, and microscopic mechanisms.
(1) Key Role of Zirconia in Erosion Resistance
Zirconia (ZrO₂) is the most critical component in Fused cast AZS blocks for erosion resistance, with its role mainly reflected in the following aspects:
High Melting Point and Chemical Stability: Zirconia has an extremely high melting point (approximately 2715°C) and excellent chemical stability, maintaining structural integrity under high-temperature and highly erosive conditions. This enables Fused cast AZS blocks to effectively resist the erosion of molten glass and alkaline oxides in glass furnaces.
Phase Transformation Toughening Mechanism: Zirconia undergoes a phase transformation from monoclinic (room temperature phase) to tetragonal (high-temperature phase) at high temperatures. This transformation, accompanied by volume changes and energy absorption, effectively alleviates thermal and mechanical stresses, improving thermal shock stability and erosion resistance.
Crack Propagation Inhibition: The phase transformation behavior of zirconia generates compressive stress within the material, inhibiting the propagation of microcracks and enhancing mechanical strength and erosion resistance.
(2) Interaction Between Fused cast AZS blocks and Molten Glass
In glass furnaces, Fused cast AZS blocks directly contact molten glass, and their erosion resistance is closely related to the interaction between the two:
Formation of Reaction Layer: Alkaline oxides (e.g., Na₂O, K₂O) in molten glass react with alumina (Al₂O₃) and silica (SiO₂) on the surface of Fused cast AZS blocks, forming high-melting-point compounds (e.g., nepheline, mullite). These compounds create a dense reaction layer on the block surface, preventing further penetration of molten glass and protecting the internal structure of the blocks.
Filling Effect of Glass Phase: Silica in Fused cast AZS blocks forms a glass phase at high temperatures, filling pores and microcracks in the block. This glass phase not only improves density but also effectively prevents the penetration of molten glass, enhancing erosion resistance.
Chemical Inertness: Zirconia in Fused cast AZS blocks exhibits high chemical inertness to alkaline oxides in molten glass, minimizing reactions. This allows Fused cast AZS blocks to maintain stable performance over long periods in glass furnaces.
(3) High-Temperature Phase Transformation Behavior
The phase transformation behavior of Fused cast AZS blocks at high temperatures significantly impacts their erosion resistance:
Phase Transformation of Zirconia: As mentioned, zirconia undergoes a phase transformation from monoclinic to tetragonal at high temperatures. This transformation absorbs significant energy and adjusts the microstructure, improving thermal shock stability and erosion resistance.
Formation and Evolution of Glass Phase: At high temperatures, silica in Fused cast AZS blocks gradually forms a glass phase, filling pores and microcracks in the block. As temperature increases, the fluidity of the glass phase increases, further enhancing density and erosion resistance.
Grain Growth and Grain Boundary Strengthening: At high temperatures, grains in Fused cast AZS blocks grow to some extent, while the glass phase or other high-melting-point compounds at grain boundaries further strengthen grain boundary bonding. This microstructural optimization improves mechanical strength and erosion resistance.
(4) Microscopic Mechanism of Erosion Resistance
From a microscopic perspective, the erosion resistance mechanism of Fused cast AZS blocks is mainly reflected in the following aspects:
Barrier Effect of Dense Structure: The high density and low porosity of Fused cast AZS blocks reduce the penetration paths for molten glass and chemical erosive media, enhancing erosion resistance. The dense structure also effectively prevents the diffusion of erosive media within the block.
Grain Boundary Strengthening: The grain boundaries in Fused cast AZS blocks typically contain a glass phase or other high-melting-point compounds, which strengthen grain boundary bonding and prevent erosive media from penetrating along the grain boundaries. Additionally, the glass phase at grain boundaries fills microcracks, improving overall performance.
Protective Effect of Reaction Layer: At the interface between molten glass and refractory blocks, the dense reaction layer not only prevents further penetration of erosive media but also absorbs some thermal and mechanical stresses, extending the service life of the blocks.
Energy Dissipation Mechanism: The phase transformation behavior of zirconia and the formation of a glass phase absorb significant energy, alleviating thermal and mechanical stresses, thereby preventing cracking or spalling of the refractory blocks at high temperatures.
(5) Erosion Resistance Performance in Practical Applications
In practical applications, the erosion resistance of Fused cast AZS blocks is mainly reflected in the following aspects:

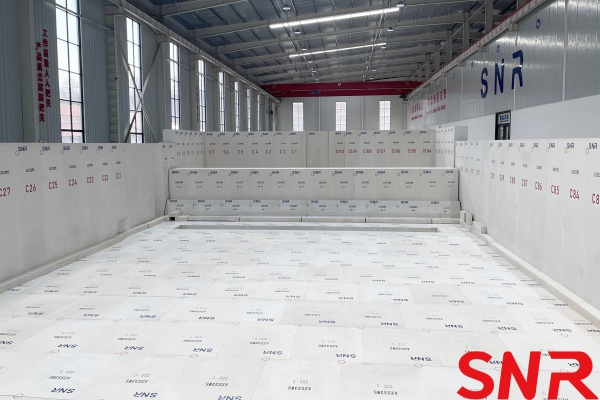

Performance in Glass Furnaces: In the melting zones of glass furnaces, Fused cast AZS blocks can withstand high temperatures (above 1500°C) and highly erosive environments for extended periods, demonstrating excellent erosion resistance. Their service life often reaches several years, far exceeding that of other refractory materials.
Spalling Resistance: The thermal shock stability and erosion resistance of Fused cast AZS blocks prevent spalling or cracking under temperature fluctuations and mechanical stresses, ensuring stable furnace operation.
Impact on Glass Quality: The erosion resistance of Fused cast AZS blocks directly affects the quality of glass products. Due to their minimal interaction with molten glass, AZS blocks effectively reduce impurities and defects in glass, improving transparency and uniformity.
3. Key Factors Affecting the Erosion Resistance of Fused cast AZS blocks
The erosion resistance of Fused cast AZS blocks is influenced by various factors, with raw material purity, sintering process, and usage environment being the most critical.
(1) Raw Material Purity

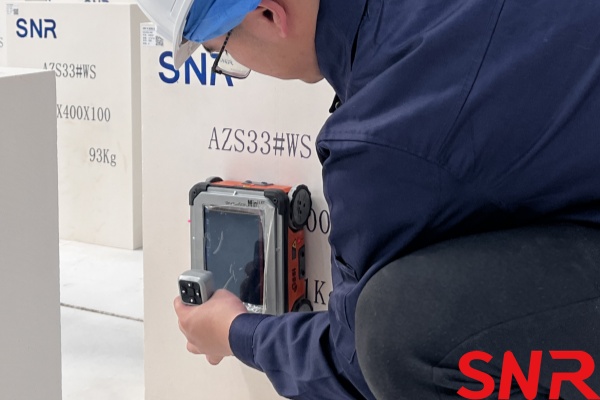

Raw material purity directly determines the chemical composition and microstructure of Fused cast AZS blocks. High-purity alumina, zirconia, and silica ensure stable chemical and physical properties at high temperatures. Impurities, especially alkali metal oxides and iron oxides, can lower the melting point and chemical stability of the blocks, weakening their erosion resistance. Therefore, selecting high-purity raw materials is the first step in producing high-performance Fused cast AZS blocks.
(2) Sintering Process
The sintering process significantly impacts the physical structure and performance of Fused cast AZS blocks. Parameters such as sintering temperature, holding time, and cooling rate must be precisely controlled to ensure high density and uniform microstructure. Excessive sintering temperatures may cause excessive grain growth, reducing mechanical strength, while insufficient sintering temperatures may lead to inadequate density and increased porosity, lowering erosion resistance. Therefore, optimizing the sintering process is key to improving the erosion resistance of Fused cast AZS blocks.
(3) Usage Environment
The usage environment, including temperature, chemical media, and mechanical stress, also significantly affects the erosion resistance of Fused cast AZS blocks. In glass furnaces, refractory blocks are exposed to high temperatures and highly erosive environments for extended periods. Alkaline oxides in molten glass react with alumina and silica in the blocks, forming low-melting-point compounds that accelerate erosion. Additionally, temperature fluctuations and mechanical stress can cause microcracks in the blocks, further reducing erosion resistance. Therefore, in practical applications, selecting the appropriate type of Fused cast AZS blocks and implementing protective measures based on the specific usage environment can extend their service life.
4. Strategies to Improve the Erosion Resistance of Fused cast AZS blocks
To enhance the erosion resistance of Fused cast AZS blocks, strategies can be implemented in three areas: material modification, structural optimization, and process improvement.
(1) Material Modification
Material modification involves introducing new components or adjusting the proportions of existing components to enhance the performance of refractory blocks. For example, increasing the zirconia content can improve thermal shock stability and erosion resistance. Additionally, adding small amounts of rare earth oxides, such as yttria (Y₂O₃), can stabilize the tetragonal phase of zirconia, preventing phase transformation at high temperatures and further improving mechanical strength and erosion resistance. Introducing nanomaterials, such as nano-alumina or nano-zirconia, can refine grains and strengthen grain boundary bonding, enhancing overall performance.
(2) Structural Optimization
Structural optimization involves altering the microstructure of refractory blocks to improve erosion resistance. For example, gradient structure design can create a surface layer with higher density and chemical stability, effectively preventing the penetration of molten glass and chemical erosive media. Additionally, controlling porosity and pore distribution can reduce the negative impact of pores on performance. For instance, using microporous or closed-pore structures can slow the penetration rate of molten glass, improving erosion resistance.
(3) Process Improvement
Process improvement involves optimizing the manufacturing process to enhance the performance of refractory blocks. For example, hot pressing or hot isostatic pressing can increase density and mechanical strength. Advanced forming techniques, such as injection molding or 3D printing, can produce complex shapes and fine structures, improving performance. Controlling the sintering atmosphere and cooling rate can optimize the microstructure and phase composition of refractory blocks, enhancing erosion resistance.
Fused cast AZS blocks are widely used in high-temperature industrial fields, particularly in glass manufacturing, due to their excellent erosion resistance. This article provides a detailed analysis of the chemical composition, physical structure, and performance of Fused cast AZS blocks under high-temperature and chemically erosive environments, revealing the microscopic mechanism of their erosion resistance. Research shows that zirconia plays a key role in erosion resistance, and the interaction between Fused cast AZS blocks and molten glass, as well as their phase transformation behavior at high temperatures, significantly impacts their erosion resistance. Additionally, raw material purity, sintering process, and usage environment are critical factors affecting erosion resistance. Through material modification, structural optimization, and process improvement, the erosion resistance of Fused cast AZS blocks can be further enhanced, providing theoretical and practical guidance for future research and development of refractory materials.
Henan SNR Refractory Co., Ltd. is dedicated to the manufacturing research and development of fused cast AZS refractory materials for the glass industry. Meanwhile, SNR can provide total solutions and services for glass furnace design, glass furnace construction, renovation, and upgrading. Please contact me if you have any requirements.
